MONROD SISTEMAS

Casos de Estudio / Diseño del Mes..

Ficha Tecnica:

Para Corporativo:

Representante:

(*) Prohibida la reproducción total o parcial sobre cualquier medio impreso o magnético de cualquier etiqueta sin el consentimiento por escrito de nuestra parte.

(*) All logos and brand names are trademarks of their respective holders

(Todos los logos y nombres son marcas registradas de sus propios distribuidores)

MonRod Sistemas / Productos y Servicios / Software

(*) All logos and brand names are trademarks of their respective holders

(Todos los logos y nombres son marcas registradas de sus propios distribuidores)

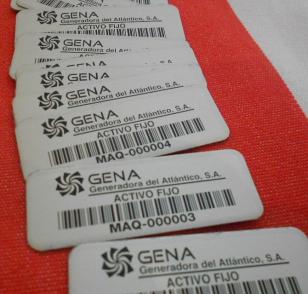

PRODUCT:                        XPA277  Metal Bar Code Name Plates

TICKNESS:                       .008”                   Photo Anodized Aluminum

Serialization:                   Yes (desde-hasta) MAQ-000001 – MAQ-001000

Code-Bar:                         Yes (Code-39)

Logo:                                Yes (BLANCO Y NEGRO)

Color:                               NO (BACKGROUND GRAY)

Flexible:                            NO

Environment:                    EXTREME. Resists extreme abrasions, solvents and                                            temperatures.

HOLES:                             NO

Affixing Methods:              Permanent, pressure-sensitive adhesive. One or two holes a                                       available for an additional charge.

Adhesive:                         .005” thick pressure-sensitive acrylic adhesive that provides                                        an excellent bond to unpainted metal surfaces.

Panamá. Rep. de Panamá

Ficha Tecnica:

Para Corporativo:

Silao, Gto. México

PRODUCT:                        XPF277  Foil Bar Code Labels

Just as effective in an office as it is on the production floor this product is ideal for customers who require a flexible label that will conform to most surfaces, yet need a product that will withstand harsh conditions including chemicals, abrasion, solvents and high temperatures. Available with or without a bar code, this product is produced using a photo imaging process for maximum clarity and detail and then sealed within the anodic layer of the aluminum – ensuring accurate and reliable reads for years to come. Optional second colors are screen printed.

TICKNESS:                       .003”      Photo Anodized Aluminum

Serialization:                     Yes (desde-hasta) MAQ-000001 – MAQ-001000

Code-Bar:                         Yes (Code-39)

Logo:                                Yes (GREEN)

Color:                               YES (BACKGROUND GRAY)

Flexible:                            YES

Environment:                    EXTREME. Resists extreme abrasions, solvents and temperatures.

HOLES:                             NO

Affixing Methods:              Permanent, pressure-sensitive adhesive.

Adhesive:                         .0035” thick acrylic adhesive that provides excellent bond to plastic or powder-                                                         coated surfaces and a very good bond to bare metal surfaces..

MonRod Sistemas (r) / Logo / Etiquetas / Tijuana
Google+

Ficha Tecnica:

Para Corporativo:

Representante:

Operadora y Proyeccion Comercial

León,Gto. México

León, Gto. México

PRODUCT:                        XPLY254 Prem STYLEMARK label

Premium “STYLEMARK” Labels feature a UV resistant polycarbonate film giving the label a thinner profile allowing the label to easily conform to uneven or curved surfaces. Subsurface printing combined with the textured, non-reflective polycarbonate material makes these labels extremely resistant to abrasion and protects the label from caustics/acids. Our Digital printing combined with unlimited color choices including four-color process, standard, and PMS colors show off even the most detailed logos, type, and artwork.

MATERIAL:                       Polyester (Polycarbonate)

TICKNESS:                       .007 thick UV resistant polycarbonate with non-                                                                          reflective finish

Serialization:                      Yes

Code-Bar:                         Yes (Code-39)

Logo:                                Yes

Color:                               Yes

Flexible:                            Yes

Environment:                    Mild, moderate and extreme. Resists extreme abrasions and caustics/                                          acids.

Affixing Methods:              Permanent, pressure-sensitive adhesive

Adhesive:                         0035" thick pressure-sensitive adhesive that provides excellent                                                   adhesion to uneven or rough surfaces as well as slightly oily surfaces.

Aplicacion:                        Mobiliario y Equipo de Oficina, Equipo de Cómputo, Maquinaria y Equipo                                        de Producción, Etiquetado Automotriz, Equipo Medico.

ASAHI ALUMINIUM MÉXICO S.A. DE C.V.

Asi lo diseñamos

Producto Final

Asi lo diseñamos

Producto Final

Asi lo diseñamos

Producto Final

Ficha Tecnica:

Para Corporativo:

PRODUCT:                        XPA062               Metal Bar Code Name Plates

TICKNESS:                       .020”                   Photo Anodized Aluminum

Size:                                 2.375 x .75”

Serialization:                     Yes  (style “variable catalog accounts”)

Code-Bar:                         Yes (Code-39)

Logo:                                Yes (BLANCO Y NEGRO)

Color:                               NO (BACKGROUND GRAY)

Flexible:                            NO

Environment:                    EXTREME. Resists extreme abrasions, solvents and                                            temperatures.

HOLES:                             Yes

Affixing Methods:              Permanent, pressure-sensitive adhesive. One or two holes a                                       available for an additional charge.

Adhesive:                         MC778 .0035 PS Adhesive.

Asi lo diseñamos

Producto Final

Nishikawa Cooper México

Silao, Gto. México

Ficha Tecnica:

PRODUCT:                        XTL019 Tamper Evident BC Label 2x1"

                                                   XTL871 Tamper Evident BC Label .70x.375"

TICKNESS:                       .002”     Tamper Evident Polyester

Serialization:                     Yes (desde-hasta) 010000-011000

                                                                   020000-021000

Code-Bar:                         Yes (Code-39)

Logo:                                Yes (NEGRO)

Color:                               Yes (BACKGROUND GREEN APPLE)

Flexible:                            Yes

Environment:                    Mild and moderate. Resists moderate caustics/acids and solvents

HOLES:                             NO

Affixing Methods:              Permanent pressure-sensitive adhesive

Description:                      Discourage theft and keep your property in tact with  Tamper-Evident Labels. If someone attempts to remove the label, the word "VOID" is left behind on the surface of the asset and the back of the label. Add a bar code and/or human readable number to the label and use it as part of an overall asset tracking system. Digital printing ensures even the most detailed logo will look crisp and clean while subsurface printing protects the logos, copy and bar code against solvents, caustics and mild abrasion.

Asi lo diseñamos

Producto Final

Para Corporativo:

TECHINT SA DE CV

México, D.F.

Ficha Tecnica:

PRODUCT:                        XWL277 VALUMARK Bar Code label

                                       XPA277P Metal BC nameplate

TICKNESS:                       .002” White Polypropylene,  and

                                       .008” Photo Anodized Aluminum

Serialization:                     Yes

Code-Bar:                         Yes (Code-39)

Logo:                                Yes (Color and B/W)

Color:                               Yes (BACKGROUND White and Silver)

Flexible:                            Yes

Environment:                    Mild and moderate. Resists moderate caustics/acids and solvents

HOLES:                             Yes / No

Affixing Methods:              MC06 Pressure Sensitive Adh. And MC778 .0035 PS Adhesive

Description:                            Available with or without a bar code, "VALUMARK" Labels are an ideal solution for indoor asset tracking. The flexible polypropylene material easily conforms to curved or uneven surfaces and the pressure-sensitive adhesive provides excellent adhesion to stubborn plastic surfaces. Subsurface printing ensures maximum clarity and protection, ensuring that your logo, designs, stylized type and bar code stay clean and readable.

Combines maximum durability with reliable bar code clarity and numbering. Available with or without a bar code, Metal Bar Code Nameplates are produced using a photo imaging process for maximum detail and then sealed within the anodic layer of the aluminum – ensuring accurate and reliable reads for years to come. Include copy with stylized type, logos or other designs to make your name really stand out. Optional second colors are screen printed.

Asi lo diseñamos

Para Corporativo:

LIVSMART AMERICAS SA DE CV

Lourdes Colon, La Libertad,

El Salvador

Producto Final

Hermosillo, Son. México
